Mood Lamp

Mood Lamp basically is a RGB led lamp made with 10 RGB led connected in parallel. This lamp is controlled by microcontroller which changes its colour through PWM pins.




RGB led



PARTS USED

  • RGB LEDs
  • PCB
  • Power supply (9v)
  • Arduino microcontroller
  • Transistor TIP122
  • Solder iron

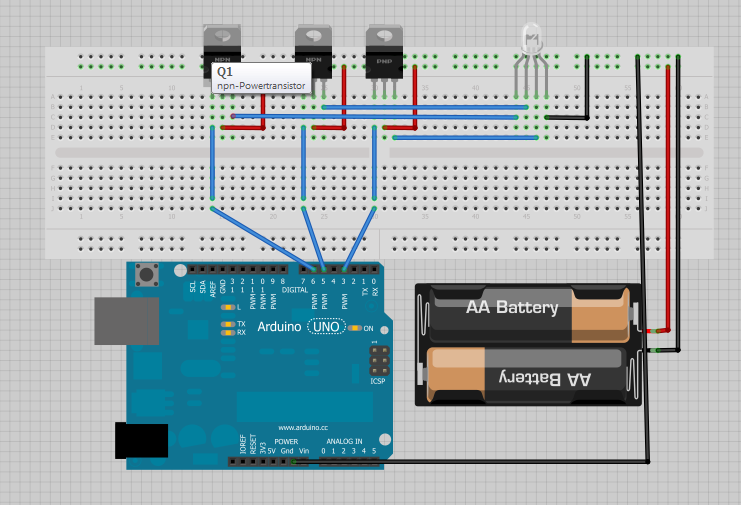

Schematic

RGB led lamp Circuit

Code

int redPin = 6;
int greenPin = 15;
int bluePin = 3;
void setup()
{
  pinMode(redPin, OUTPUT);
  pinMode(greenPin, OUTPUT);
  pinMode(bluePin, OUTPUT);
}
void loop()
{
  setColor(255, 0, 0);  // red
  delay(1000);
  setColor(0, 255, 0);  // green
  delay(1000);
  setColor(0, 0, 255);  // blue
  delay(1000);
  setColor(255, 255, 0);  // yellow
  delay(1000);
  setColor(80, 0, 80);  // purple
  delay(1000);
  setColor(0, 255, 255);  // aqua
  delay(1000);
}
void setColor(int red, int green, int blue)
{
  analogWrite(redPin, red);
  analogWrite(greenPin, green);
  analogWrite(bluePin, blue);
}


Change the code as per your project.
