iPhone Arduino Push Notification

This project will help you to hack your doorbell to send Push notification and an email with an attached picture when somebody’s at the door. It use the free PushingBox service to delegate all the programming part and make things easy.

How does it work

  • 1. When the doorbell is pushed, the Arduino sends an HTTP request to the PushingBox API.
  • 2. PushingBox launches the user's scenario and gets a picture from the web camera.
  • 3. PushingBox sends a Push notification to the user's phone and a mail message with the picture attached.

Notifying Doorbell with PushingBox

Notifying Doorbell with PushingBox

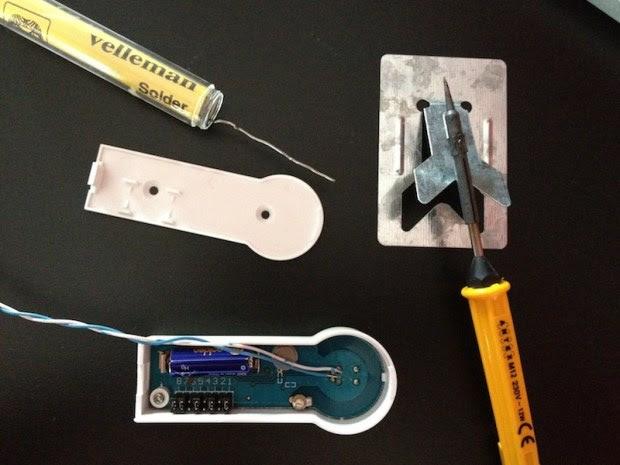

  • Open your doorbell.
  • Solder wires to the button's terminals.
  • Close the doorbell.

Notifying Doorbell with PushingBox
  • Plug the wires into the Arduino.
  • One wire on the 5v pin;
  • One wire on the 3rd input pin;
  • The 10K resistor between GND and the 3rd pin.

Notifying Doorbell with PushingBox
  • Test the connectivity with a simple Arduino program.

Notifying Doorbell with PushingBox
  • The hardware part is finished. Let's define the way you will be notified.
  • Go to
  • Login with your Google account.
  • Go to the My Services page.
  • Click on Add a service.

Notifying Doorbell with PushingBox
  • Click on the service by which you want be notified.
  • Use Prowl or for iPhone Push notification;
  • Notifry for Android Push notification;
  • Toasty for Windows Phone Push notification.
  • Enter the name of your new service and fill in the API that this application gave you when you installed it.
  • Click Submit.

Notifying Doorbell with PushingBox
  • Now, go to the My Scenarios page.
  • Create a scenario called "Somebody's at the door".
  • Click on Create scenario.
  • Click on Add an Action.

Notifying Doorbell with PushingBox          First, add an action using the Email Service.
  • Fill in the mail Subject and the Body.
  • The third field is optional and is for attaching a shot from your IP camera to the email. Fill in the URL (publicly reachable) of your web camera. The camera's output must be a picture less than 100KB in size.
  • Do the same with your Push notification service and click the Back button.

Notifying Doorbell with PushingBox

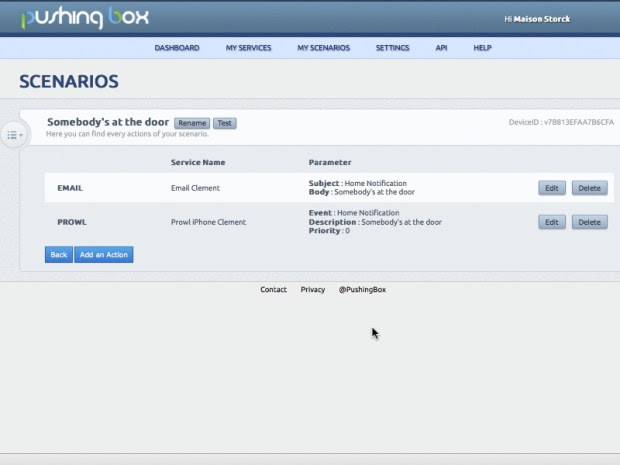

  • Your scenario is now created.
  • Click on "Test" to test the scenario.
  • You should receive a Push notification on your phone and an email.
  • Make a note of the "DeviceID" value of this scenario. You will paste it into the Arduino code.

Notifying Doorbell with PushingBox
  • Download the Arduino source code from the PushingBox API page and open it.
  • In the #define DEVID1 line, paste the DeviceID of your scenario. Make sure you enclose it in quotes as shown.
  • Compile the code and program your Arduino.
  • You're done! Test it
